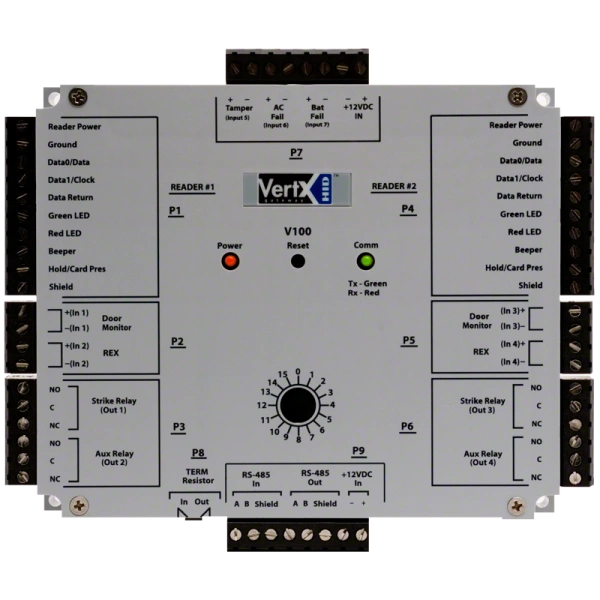

HID VertX V100 Door/Reader Interface

The V100 Door / Reader Interface connects two access control card readers via Wiegand or Clock-and-Data interface controlling either one or two doors. The V100 features on-board flash memory, allowing program updates to be downloaded via the network. The V100 connects to the V1000 through a high speed RS-485 network. The V1000, in turn, communicates with the system host via industry standard TCP/IP protocol over 10/100 Mbps Ethernet or the Internet. This architecture minimizes the impact on corporate LANs by using only one TCP/IP address for every 32 interfaces and by handling low-level transactions on the RS-485 network. Key Benefits:

• Reports supervised inputs.
• Connects to the V1000 via RS-485.
• Receives and processes real time commands from the V1000.
• Reports all activity to the V1000.
• Attractive polycarbonate enclosure protects components from damage.
• All connections and indicators are fully identified by silk-screened nomenclature on the cover.
• Processes off-line access control decisions based on facility code.
• UL 294 and UL 1076 recognized components.
